SH128 Automatic freezing point tester - Automatic freezing point tester - Shandong Shengtai Instrument Co.,Ltd.
7*24 Hour working hours all the time

0531-85919987

Product navigation

Automatic freezing point tester

Home > Products > PETROCHEMICAL ANALYZER > Automatic freezing point tester
  • Name:

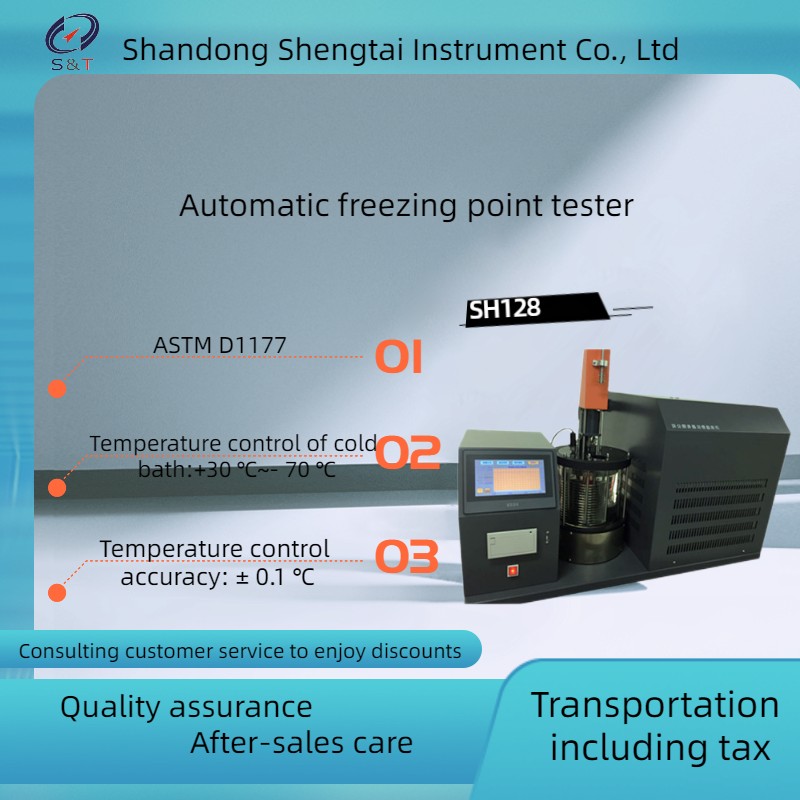

    SH128 Automatic freezing point tester
  • Model

    SH128
  • Brand

    Shengtai Instrument
  • 0531-85919987
  • Wechat:

    +86 13370527859
  • +86 13370527859
  • Consultation:

    点击这里给我发消息
  • Whatsapp/Wechat+86 133 7052 7859

Product Details

SH128 automatic antifreeze freezing point tester/ jet fuel freezing point tester is based on the national petrochemical industry standard SH/T0090-91 "engine coolant freezing point determination method" and ASTM D1177.

Suitable for measuring freezing point of engine coolant and concentrated liquid.

Instrument features: embedded system design, using imported PT100 temperature sensor, automatic detection throughout the test;

ASTM D2386, ASTM D1177 Engine Coolant Freezing Point Determination/Jet Fuel Ice Point Tester

Color touch screen;

The test results can be stored;

You can view historical data;

Printing results on the instrument, mechanical automatic mixing, experimental results can be exported through the U disk, stored in the computer can be compared for many times.

Technical Parameters:

Power supply:

AC 220V±10%, 50Hz

Working cold trough:

Double vacuum glass bath

Cold trough temperature:

+30-70。(customized+20-80

Temperature accuracy:

±0.1

Bath mixing:

Automatic mixing by mixing motor,power :6W1200r/min

Cooling system:

Imported cascade refrigeration compressor.

Sample stirring:

Synchronous geared motor, 60 times/min.

Ambient temperature:

≤30

Relative humidity:

About 1500W

Total power consumption:

less than 2000W

Instrument size: 720mm * 450mm * 680mm    Weight: 75kg

Applicable standards

SH/T0090-91GB/T 2430ASTM D2386ASTM D1177


Technical parameters

1, working power supply: AC220V±10%;50 hz.

2, working cold tank: double vacuum glass bath.

3, cold tank temperature control: +30℃ ~ -70℃.

(customized +20℃ ~ -80℃)

4, temperature control accuracy: ±0.1℃.

5, Bath liquid stirring: automatic stirring motor, power 6W, 1200r/min.

6, Refrigeration system: imported overlapping refrigeration compressor.

7, sample mixing: synchronous reducer motor, 1 times/second.

8. Ambient temperature: ≤30℃.

9, relative humidity: ≤85%.

10. Power consumption of the whole machine: about 1500W.

11. Instrument size: 720 * 450 * 680mm  Weight: 75kg

Packing list

S/N

Name

Unit

Quantity

Remarks

1

Host

set

1

2

Test bottle rubber stopper

piece

1

3

Freezing test tube

piece

1

4

Temperature sensor

piece

1

5

Power cable

piece

1

6

instructions

copy

1

7

Packing list

copy

1

8

Certificate warranty card

copy

1

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
